SCB\SCV\RTQ\DA\SR series
Rated torque: double acting/single acting
Angle stroke, operating Angle: 90 degrees, straight stroke. Operating Angle: linear
Ambient temperature: -20--80 degrees Celsius
Operating position: any position torque output range: 10--65000NM:7800N--197000N
Applicable air source pressure: 0.4Mpa -- 0.85mpa, maximum 1MPa
The product description

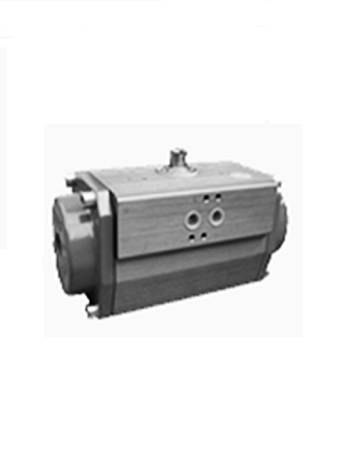

DA, SR, RTQ series pneumatic actuators design internal structure for double piston rack and pinion to ensure stable and reliable output torque. With preloaded spring seat and spring preload, reliable installation and disassembly guarantee, reducing the volume of the product. Can be configured in two double - acting and single - acting modes. RTQ series angular stroke actuator is of fork structure, through which the straight stroke of the piston is converted into angular stroke output. Mainly used to drive ball valve, butterfly valve, plug valve isometric stroke partial rotary heavy duty valve, can choose the hand wheel operation mechanism, to meet the emergency manual operation.
SCV and SCB series start actuators are piston straight stroke designed with linear output internal structure. SCV series are mainly used to drive straight stroke valves under harsh working conditions. You can choose to have handwheel operation mechanism to meet the manual operation under emergency circumstances.
AM series electric actuator
Technical specifications
Rated torque: switch type adjustable type
Voltage: 220 v, 380 v, 110 v
Angle stroke operation Angle: 90 degrees, straight stroke linear, multi-turn
Ambient temperature: -20--80 degrees Celsius
Operating position: any position torque output range: 50--3000NM:44000N--445000N
The product description
Electric actuator is used to control a variety of valves and other similar products, such as butterfly valve, ball valve, gate valve, globe valve, regulating valve, etc., 380V/220V/110V AC power supply as the driving power, 4-20MA current signal as the control signal, can make the valve movement to the required position, automatic control. Angular stroke and multi-rotary actuator can be changed into partial rotation, arm type, linear actuator and 90 degree angular stroke.
